ldap server configuration in centos 6 step by step

In this articles, how to install and configuration openldap in centos 6 step by step. openldap run 2 port: 389 ( insecure ) and 636 ( secure )

What does CN, OU, DC mean?

CN = infomon Name
OU = Organizational Unit
DC = Domain infoponent

Installing and configuration openldap server on in centos 6

Step 1: Install LDAP

# yum install openldap*

Step 2: Now generate a encrypted password for Administrator User That is "Admin"

# slappasswd

NOTE: You need to copy above generated password to text

Step 3: Edit the following file:

# vi /etc/openldap/slapd.d/"cn=config"/"olcDatabase={2}bdb.ldif"

Change

olcSuffix: dc=linuxoperatingsystem,dc=info
olcRootDN: cn=Admin,dc=linuxoperatingsystem,dc=info
olcRootPW: <paste encrypted="" here="" password="" your=""> ( copy password at step 2 )
olcTLSCertificateFile: /etc/pki/tls/certs/linuxoperatingsystem.pem
olcTLSCertificateKeyFile: /etc/pki/tls/certs/linuxoperatingsystemkey.pem

Step 4: Now specify the Monitoring privileges

# vi /etc/openldap/slapd.d/"cn=config"/"olcDatabase={1}monitor.ldif"

Chage

"cn=manager,dc=linuxoperatingsystem,dc=info"

 to

"cn=Admin,dc=linuxoperatingsystem,dc=info"

Step 5:  Now copy the sample database file

#cp /usr/share/openldap-servers/DB_CONFIG.example /var/lib/ldap/DB_CONFIG
#chown -R ldap:ldap /var/lib/ldap/

Step 6: Configure OpenLDAP to listen on SSL/TLS

# vi /etc/sysconfig/ldap
SLAPD_LDAPS=yes #(default is no)

Step 7: Now you need to create a certificate for OpenLDAP Server.

# openssl req -new -x509 -nodes -out /etc/pki/tls/certs/linuxoperatingsystem.pem -keyout /etc/pki/tls/certs/linuxoperatingsystemkey.pem -days 365

Step 8:You need to change owner and group ownership of certificate and keyfile

#chown -Rf root:ldap /etc/pki/tls/certs/linuxoperatingsystem.pem
#chown -Rf root:ldap /etc/pki/tls/certs/linuxoperatingsystemkey.pem

Step 9:  Start/Restart the service of OpenLDAP

# service slapd restart
# chkconfig slapd on

Step 10: Now you need to create base objects in OpenLDAP.

Create it manually or use migration tools to automation

I use tool to create .ldif file :

# yum install migrationtools
# cd /usr/share/migrationtools/
# ls
# vi migrate_common.ph

on the Line Number 61, change "ou=Groups"

  $NAMINGCONTEXT{'group'}             = "ou=Groups";

  on the Line Number 71, change your domain name

$DEFAULT_MAIL_DOMAIN = "linuxoperatingsystem.info";

on the line number 74, change your base name

$DEFAULT_BASE = "dc=linuxoperatingsystem,dc=info";

on the line number 90, change schema value

$EXTENDED_SCHEMA = 1;

For example: Creating 2 local users and groups and then I will migrate to LDAP

# useradd -d /home/ldapuser1 ldapuser1
# useradd -d /home/ldapuser2 ldapuser2

Now assign the password

# passwd ldapuser1
# passwd ldapuser2

Now you need to filter out these users from /etc/passwd to another file:

# getent passwd | tail -n 2 > /root/users

Now you need to filter out password information from /etc/shadow to another file:

# getent shadow | tail -n 2 > /root/passwords

Now you need to filter out user groups from /etc/group to another file:

# getent group | tail -n 2 > /root/groups

So Open the following file to change the location of password file

# vi migrate_passwd.pl

Inside this file search /etc/shadow and change it to /root/passwords and then save and exit.

Now generate a base.ldif file for your Domain, use the following:

#./migrate_base.pl > /root/base.ldif

Now generate a ldif file for users

# ./migrate_passwd.pl /root/users > /root/users.ldif

Now Generate a ldif file for groups

# ./migrate_group.pl /root/groups > /root/groups.ldif

Step 11: Now it' time to upload these ldif file to LDAP Server

# ldapadd -x -W -D "cn=Admin,dc=linuxoperatingsystem,dc=info" -f /root/base.ldif
# ldapadd -x -W -D "cn=Admin,dc=linuxoperatingsystem,dc=info" -f /root/users.ldif
# ldapadd -x -W -D "cn=Admin,dc=linuxoperatingsystem,dc=info" -f /root/groups.ldif

Enable log openldap Server

# vi /etc/rsyslog.conf

Add line following below into rsyslog.conf

# LDAP
local4.* /var/log/ldap.log

Restart Rsyslog server

# /etc/init.d/rsyslog restart

Restart openldap server

# /etc/init.d/slapd restart

Now you can use "ldapsearch" command

# ldapsearch -x -b "dc=linuxoperatingsystem,dc=info"

Test connect to Openldap server

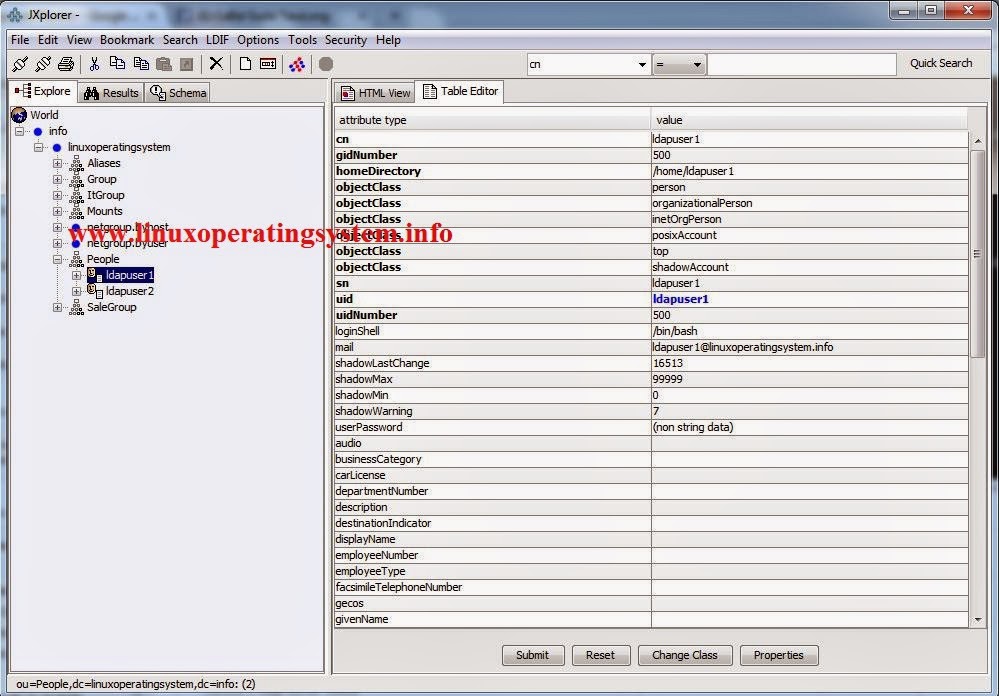

I use JXplorer software as picture below :

Output:

Link youtube ldap server configuration in centos 6 step by step
